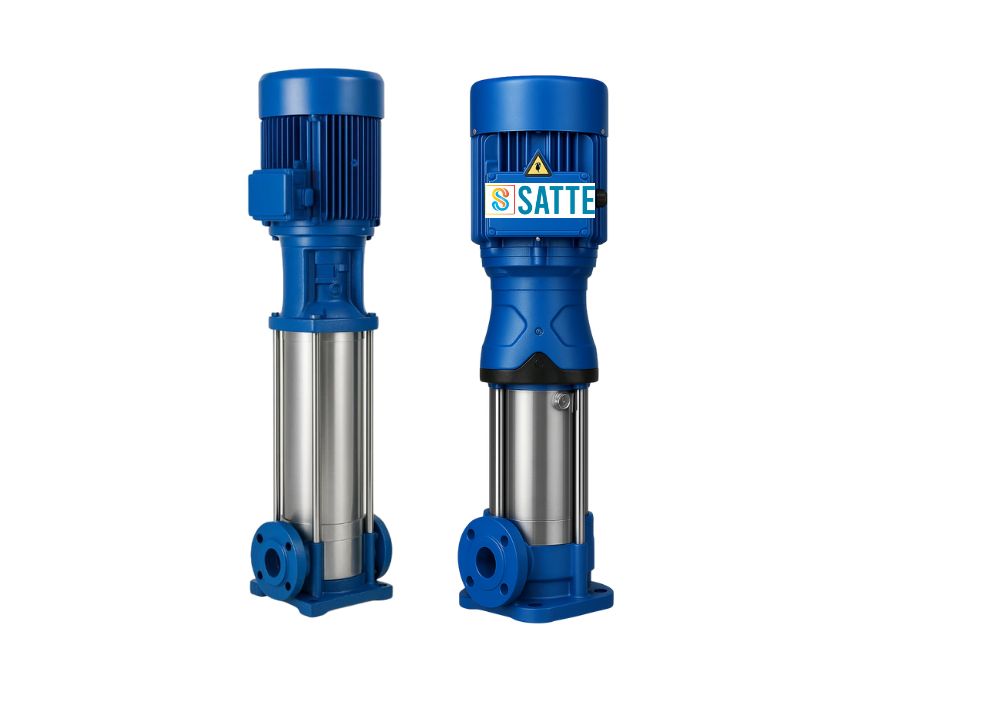

SAR 4



Typical Applications

  • Municipal water distribution - The pump can be used to supply water in urban and rural areas through municipal water supply systems.
  • High-rise buildings - Suitable for providing pressurized water to tall structures, ensuring consistent supply across different floors.
  • Agricultural irrigation - The pump can be employed in farming and agriculture to deliver water to crops, ensuring proper hydration for optimal growth. Industrial processes - Suitable for transferring liquids in various industrial applications, such as manufacturing processes or chemical plants.
  • Commercial facilities - Used in settings like hotels, resorts, and commercial buildings to transfer liquids for different purposes.

Operating Conditions

  • PumpedLiquids:Thin,clean,non-explosive liquids without solid particles or fibres.
  • Liquid Temperature Range: -15°C to +120°C
  • Maximum Ambient Temperature: +50°C
  • Maximum Suction Lift: According to the NPSH curve plus a safety margin of 1m
  • Maximum Operating Pressure: 23 bar

Technical Data

Model
Voltage (V)
Motor
Full Load Current
Dimension(mm)
Weight (kg)
Kw HP B1 B2 B1+B2 D1 D2
SAR4-5 1x240 1.1 1.5 3.7 367 245 612 170 142 27
SAR4-8 1x240 1.5 2 7.4 458 290 748 190 155 33
SAR4-10 1x240 2.2 3 7.4 512 290 802 190 155 37
Downloads SAR 4 Datasheet
