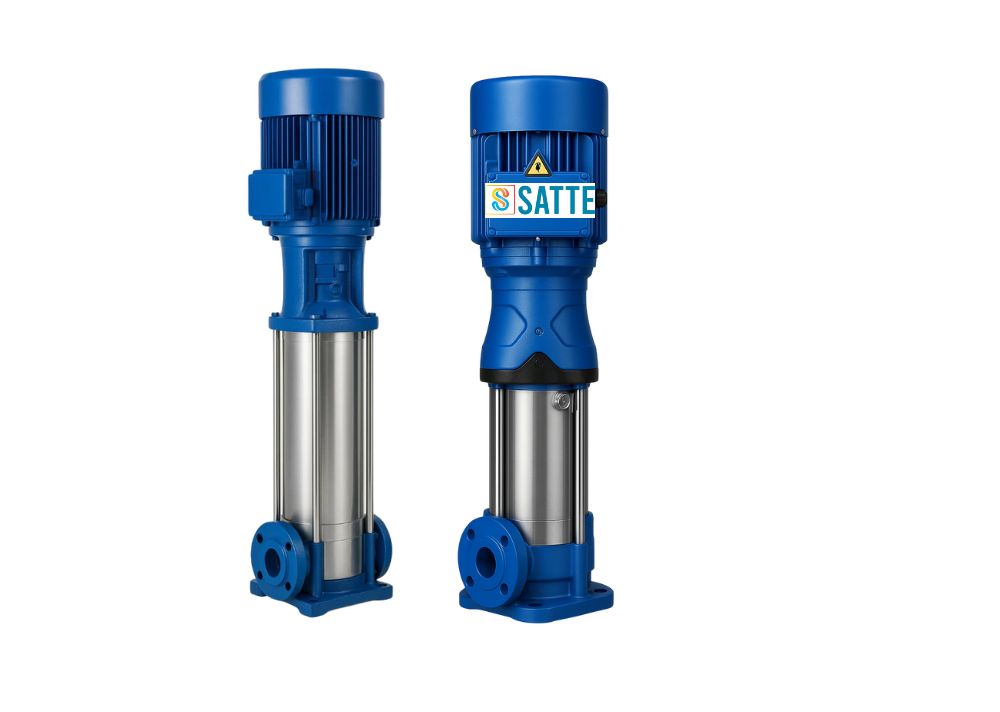

SAR 15



Typical Applications

  • Municipal water distribution - The pump can be used to supply water in urban and rural areas through municipal water supply systems.
  • High-rise buildings - Suitable for providing pressurized water to tall structures, ensuring consistent supply across different floors.
  • Agricultural irrigation - The pump can be employed in farming and agriculture to deliver water to crops, ensuring proper hydration for optimal growth.
  • Industrial processes - Suitable for transferring liquids in various industrial applications, such as manufacturing processes or chemical plants.
  • Commercial facilities - Used in settings like hotels, resorts, and commercial buildings to transfer liquids fordifferentpurposes.

Operating Conditions

  • PumpedLiquids:Thin,clean,non-explosive liquids without solid particles or fibres.
  • Liquid Temperature Range: -15°C to +120°C
  • Maximum Ambient Temperature: +50°C

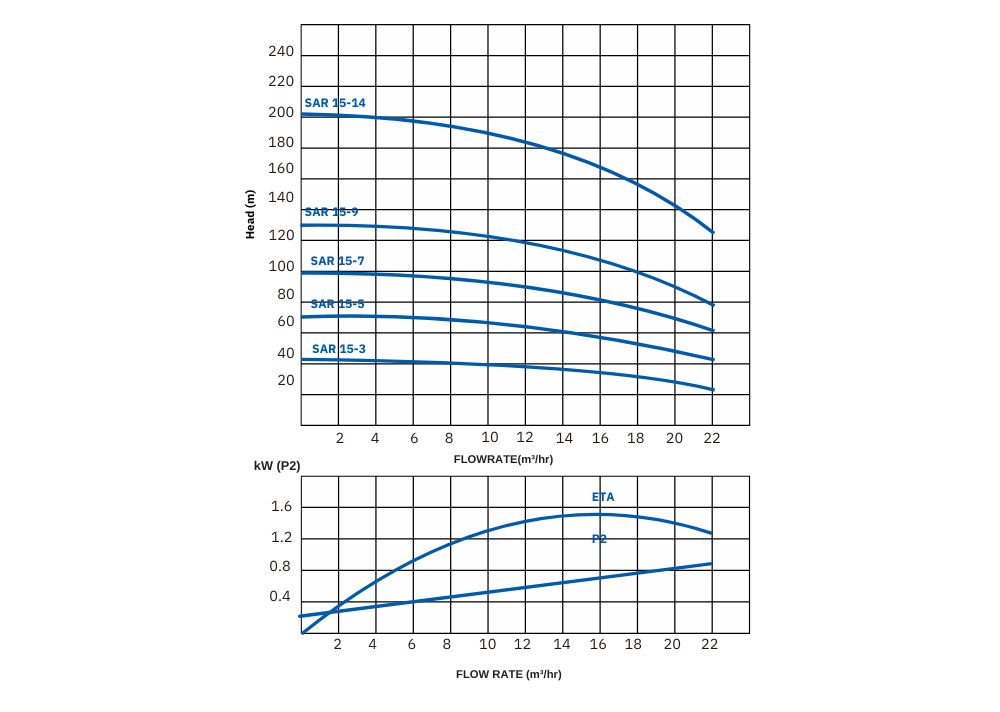

  • Maximum Suction Lift: According to the NPSH curve plus a safety margin of 1m
  • Maximum Operating Pressure: 23 bar

Technical Data

Model Voltage (V) Motor Full Load Current IStart/ I Dimensions(mm) Weight (kg)
Kw HP B1 B2 B1+B3 D1 D2
SAR 15-2 3x415 3 4 6.5 6.5 452 345 797 197 165 50
SAR 15-5 3x415 4 5.5 8.7 7.5 562 390 952 260 208 76
SAR 15-7 3x415 5.5 7.5 11.2 7 652 390 1042 260 208 84
SAR 15-10 3x415 7.5 10 14.7 8.7 875 500 1375 330 255 158
SAR 15-14 3x415 11 15 18.9 6.6 1055 500 1555 330 255 174
SAR 15-17 3x415 15 20 25.5 6.4 1190 500 1690 330 255 190

Downloads SAR 15 Datasheet
