SSP 3

SSP 3
SSP 3SSP 3


The add to cart button will appear once you select the values above

Typical Applications

  • Pump clean water with sand content 150g/m³ for diverse applications.
  • Extract water efficiently from wells for various agricultural neeSSP.
  • Utilize the pump for river-based water extraction and distribution purposes.
  • Support farm irrigation systems, ensuring optimal water supply for crops.
  • Provide reliable water supply solutions for various domestic and industrial uses.
  • Facilitate efficient water extraction in mining operations for diverse applications.
  • Aid in drainage systems within the breeding industry for optimal conditions.

Operating Condition

  • Water temperature up to 35℃
  • Ambient temperature permissible up to 40℃
  • SSP Minimum internal diameter of well: 4"(100mm)
  • Maximum Sand Content: 0.25%
  • Maximum immersion depth: 80m

Motor

  • Rewindable motor
  • Insulation Class B
  • Protection IP68
  • Speed RPM 2850
Components Material
Pump body  Stainless steel
Pump shaft  Stainless steel
Impeller POM
Bearing  C&U
Mechanical seal Ceramic /Graphite,
SIC/Graphite or Alloy
Coupling and outlet  Brass, Stainless steel
Shaft coupling  AISI304 SS
Motor shaft  AISI304 SS
Oil chamber  Cast iron

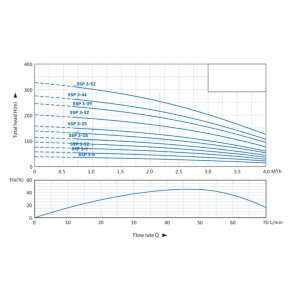

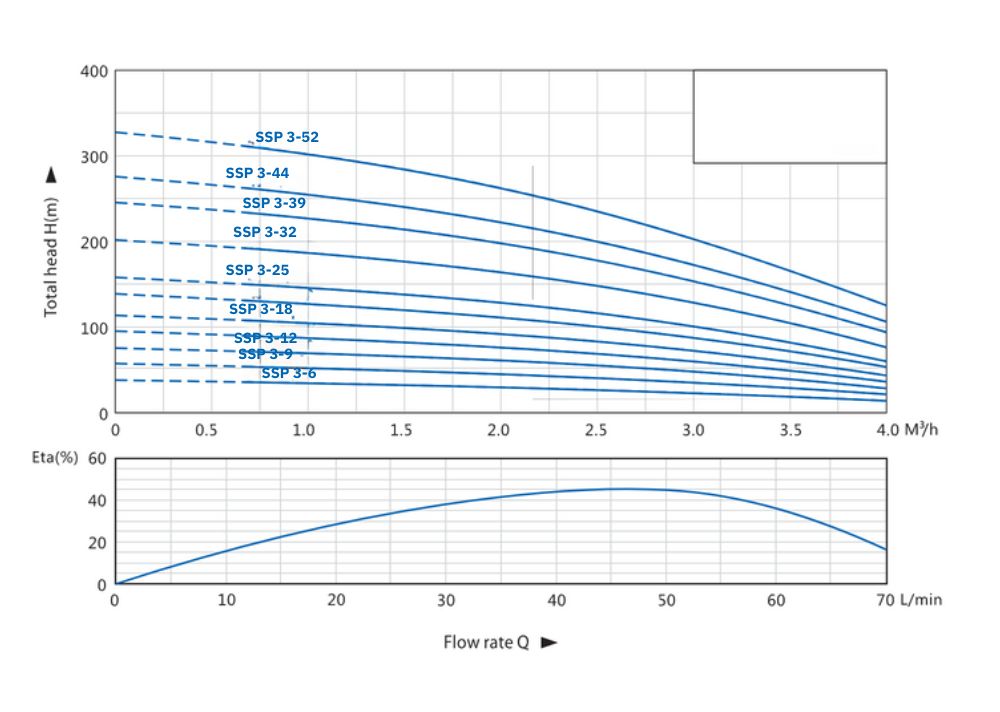

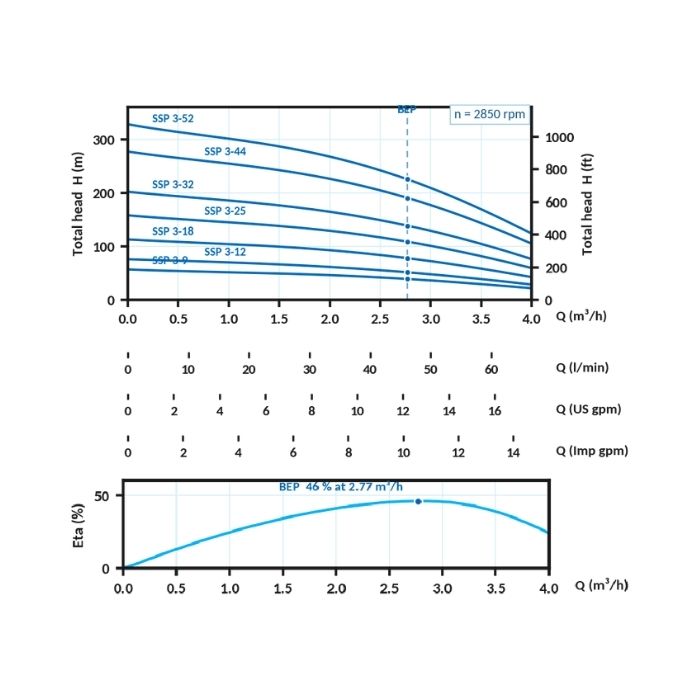

Technical Data


Model
 Motor voltage(V)
Current(A)
DN("")
 Dimensions(mm)
weight(kg)
kW HP 220-240 380-415 P M T
SSP 3/9 0.55 0.75 220-240   4.3 1 1/2 344 378 672 11
SSP 3/12 0.75 1 220-240   5.4 1 1/2 407 398 755 13
SSP 3/18 1.1 1.5 220-240 380-415 6.8 1 1/2 533 438 921 16
SSP 3/25 1.5 2 220-240 380-415 8.7 1 1/2 680 515 1145 21
SSP 3/32 2.2 3 220-240 380-415 12.8 1 1/2 827 590 1367 26
SSP 3/44 3 4   380-415 6.7 2 1/2 1079 605 1634 30
SSP 3/52 4 5.5   380-415 8.9 3 1/2 1247 723 1920 34



Product Video

Datasheet/Downloads SSP 3 Datasheet
