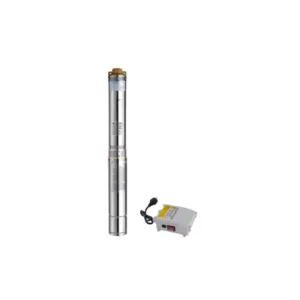

SSD 2

SSD 2
SSD 2SSD 2


The add to cart button will appear once you select the values above

Typical Applications

  • Pump clean water with sand content 150g/m³ for diverse applications.
  • Extract water efficiently from wells for various agricultural needs.
  • Utilize the pump for river-based water extraction and distribution purposes.
  • Support farm irrigation systems, ensuring optimal water supply for crops.
  • Provide reliable water supply solutions for various domestic and industrial uses.
  • Facilitate efficient water extraction in mining operations for diverse applications.
  • Aid in drainage systems within the breeding industry for optimal conditions.

Operating Conditions

  • Water temperature up to 35℃
  • Ambient temperature permissible up to 40℃
  • SSD Minimum internal diameter of well: 4"(100mm)
  • Maximum sand content: 0.25%
  • Maximum immersion depth: 80m
  • Rewindable motor Insulation: Class B Protection Ip68
Components Material
Pump body Stainless steel
Motor bracket Stainless steel
Motor shaft AISI304 SS
Pump shaft Stainless steel
Impeller POM
Diffuser PC
Bearing C&U, NSK if request
Mechanical seal Ceramic /Graphite,
SIC/Graphite or Alloy
Coupling and outlet Brass, Stainless steel
Shaft coupling AISI304 SS

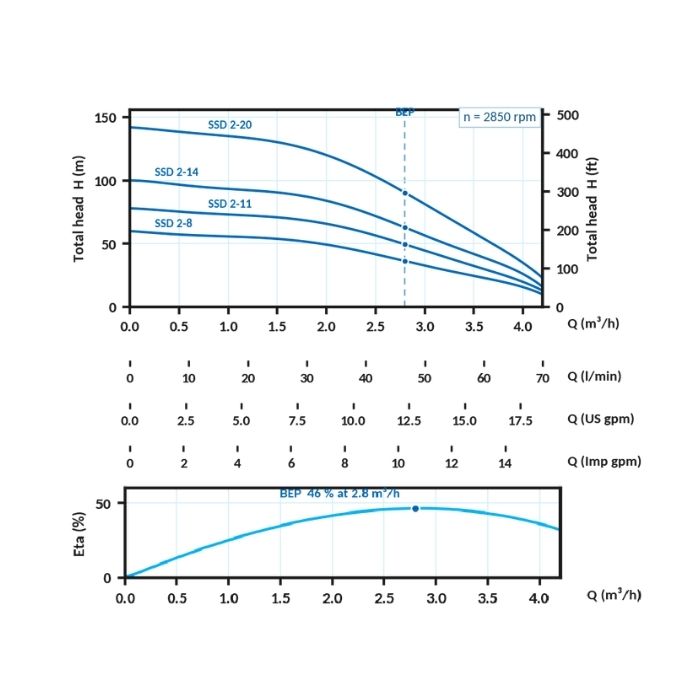

Technical Data

Model Motor Voltage
(V)		 Current
(A)		 Istart / I DN
(")		 Dimensions (mm) Weight
(Kg)
KW HP P M T
SSD 2-8 0.37 0.5 1x240 3.2 4 1¼ 424 363 737 11
SSD 2-11 0.55 0.75 4.3 505 398 833 13
SSD 2-14 0.75 1 5.4 586 438 934 15
SSD 2-20 1.1 1.5 6.8 779 438 1167 18

Product Video

Datasheet/Downloads SSD 2 Datasheet
