SSDP2

SSDP2
SSDP2SSDP2


The add to cart button will appear once you select the values above

Typical Applications

  • For water supply from wells or reservoirs
  • For domestic use, for civil and industrial applications
  • For garden use and irrigation
    Operating Conditions
  • Maximum fluid temperature + 35 °C
  • Maximum sand content 0.15%
  • Maximum well diameter: “4”
    Motor and Pump
  • Rewindable motor
  • Single Phase: 220V/50Hz
  • Equip with start control box or digital auto
    control box
  • Pumps are designed by casing stressed
    Curve tolerance according to ISO9906
Components Material
Delivery casing AISI 304 SS
Suction lantern AISI 304 SS
Pump external casing AISI 304 SS
Diffuser Plastic PC
Impeller Plastic POM
Motor external casing AISI 304 SS
Top Chock Cast-iron ASTM NO.30
Bottom support AISI 304 SS
Mechanical shaft Graphite-Ceramic
Shaft AISI 304 SS-ASTM5140
Seal lubricant oi Oil for food machinery and pharmaceutic use

Technical Data

Model
Voltage (V)

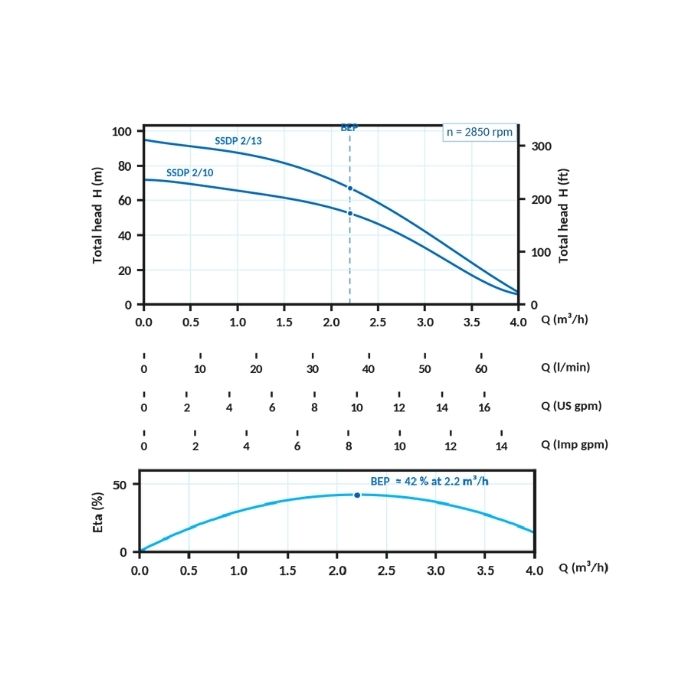

 Power   Capacity & Head n=2850 R.P.M
kW
HP
 Q(M ³/h) 0 0.5 1 1.5 2 2.5 3 3.5 4
Q(L/Min) 0 8 17 2.5 33 42 50 58 67
SSDP2/10
220V- 240 V
 0.75 1   72 37 66 62 55 46 34 16 6
SSDP2/13 1.1 1.5 H(M) 94 94 86 80 75 60 44 21 8



Product Video

Datasheet/Downloads SSDP2 Datasheet
